Seiko Caliber 7A38: Quartz Chronograph Movement Guide

At first glance, a Seiko 7A38 can look like a conventional three-register mechanical chronograph. Its pushers, subdials and central timing hand invite that comparison. The difference is inside: a quartz-controlled movement with separate step motors, a jewelled gear train and a calendar. For collectors, the 7A38 is interesting not because quartz imitates a mechanical watch, but because Seiko built a remarkably elaborate analogue instrument around quartz timekeeping.

This guide explains what Caliber 7A38 actually does, how its controls work, which specifications can be checked against Seiko documentation and what to examine in a surviving watch. Three different 7A38 references in the Vintage Watch Studio archive show how widely Seiko varied the surrounding watch design while retaining the same essential chronograph concept.

Seiko 7A38 specifications at a glance

Seiko's service literature labels the documented movement 7A38A; watches and dials commonly use the shorter 7A38 designation. The following movement-level data comes from Seiko's original technical guide, not estimates derived from photographs.

Where the 7A38 sits in Seiko chronograph history

Seiko dates the milestone of the world's first analogue quartz chronograph to 1983. That milestone concerns the earlier 7A28 generation, which combined conventional hands with quartz-controlled elapsed-time measurement. The 7A38 belongs to that same early-1980s technical family, but adds a practical day-and-date display. It is not accurate to describe the 7A38 itself as the first analogue quartz chronograph.

The parts catalogue for 7A38A is marked March 1984, and the VWS archive documents examples dated 1984, 1985 and 1986. Those are useful fixed points; they do not establish a precise worldwide first-sale date or a complete production chronology for every variation. Seiko's own heritage timeline supplies the wider historical context.

Inside the movement: four motor systems, not a mechanical escapement

A mechanical chronograph divides power from a mainspring through wheels and a regulator. The 7A38 instead uses a quartz oscillator and electronic circuit to command its gear trains. The factory 7A38A parts list identifies four coil blocks and four step rotors: one for normal time indication and three assigned to chronograph seconds, minutes and fractional seconds. A decorative multi-register dial alone would not prove this architecture; the factory parts documentation does.

The movement uses metal bridges, gears and jewelled bearings that can be dismantled and inspected. That is a more informative description than calling every old 7A38 'indestructible' or assuming that any available 7A-series component will interchange. The additional calendar assembly also means that a part shared in appearance with a 7A28 may differ in dimensions or configuration. Replacement-part compatibility has to be checked against the correct part number and case configuration.

What does the 5/100-second register mean?

Seiko's technical and operating documents consistently call the fractional register the 5/100-second hand: it indicates increments of five hundredths of a second, or 1/20 second. It is common to encounter secondary descriptions that call a 7A38 a '1/10-second chronograph'. For a technical movement guide, the manufacturer's notation is the safer reference. The hand's behaviour during extended timing also follows Seiko's instruction manual: it stops indicating continuously after ten minutes, while the elapsed-time count continues.

The central chronograph hand is not the running seconds hand

The large central hand normally serves the stopwatch. The watch's ordinary running seconds are shown on a smaller register. In Seiko's own manual, the central chronograph hand can be started as a display-style second hand, but it does not thereby become the movement's normal timekeeping seconds indication. A stationary central hand is therefore not by itself a defect.

How to operate a Seiko 7A38

The controls can be less intuitive than those on a two-pusher chronograph. Seiko's original operating instructions identify three buttons and a two-click crown. Their physical positions vary with case design, so identify the functions rather than relying only on clock-face locations.

For calendar correction, Seiko specifies turning the first-click crown counterclockwise for the date and clockwise for the day. Avoid using the rapid calendar correction while the displayed hands are between 9 p.m. and 3 a.m., because the changeover train may already be engaged. If the calendar does not respond normally, do not force the crown: have the mechanism inspected.

The 7A38 also offers a counter mode for moving and reading individual stopwatch hands and a procedure to return chronograph hands to zero when they no longer align. Both are explained in Seiko's original 7A38 operating manual. Follow that procedure for the correct watch before assuming that an off-zero register requires movement disassembly. By contrast, a register that will not advance, stop or return under the correct control sequence deserves further investigation.

Three Seiko 7A38 watches documented by Vintage Watch Studio

The movement specification is shared, but case architecture and dial presentation are not. Our archive includes three dated watches, all sold at the time of this review; they are reference material, not current purchase offers.

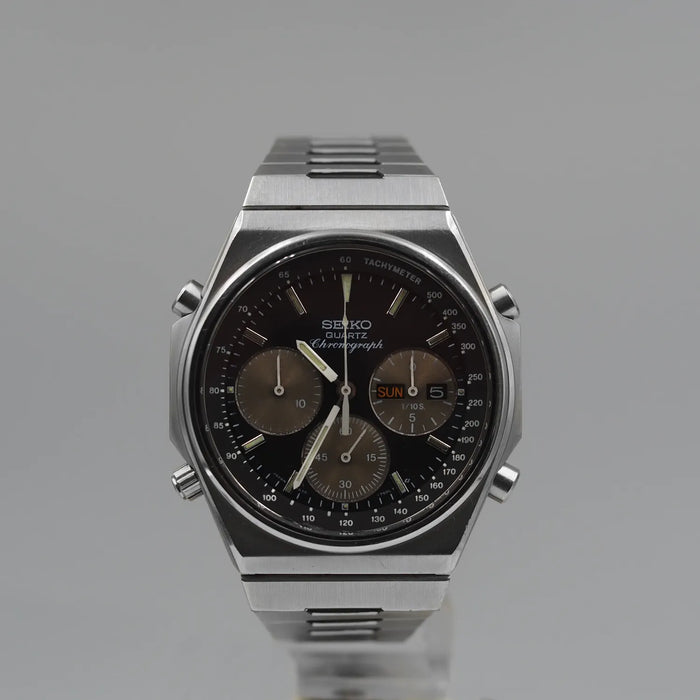

1984: 7A38-7100, an angular quartz chronograph

The 1984 Seiko 7A38-7100 combines an angular stainless-steel case and integrated bracelet with a dark dial and contrasting registers. Its clear tachymeter scale is especially useful for showing that a tachymeter is an external reading scale, while the elapsed-time measurement is performed by the movement.

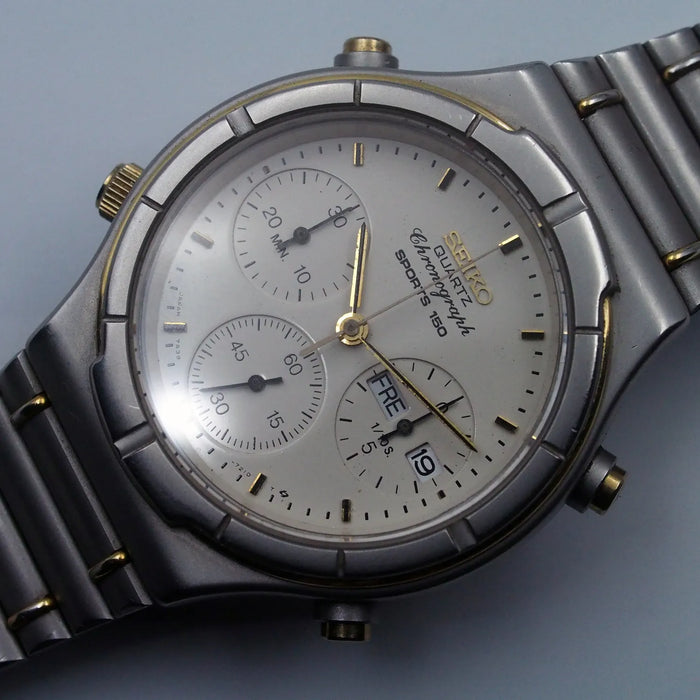

1985: 7A38-7130, Sports 150 in titanium

The 1985 Seiko Sports 150 7A38-7130 is a different expression of the same movement: a titanium case, pale dial and two-tone accents rather than the dark geometric look of the 7100. The case and bracelet materials belong to the particular watch reference, not to Caliber 7A38 in every model. Its four photographs are documented in the VWS gallery, but there is no independently verified open-movement image for this example.

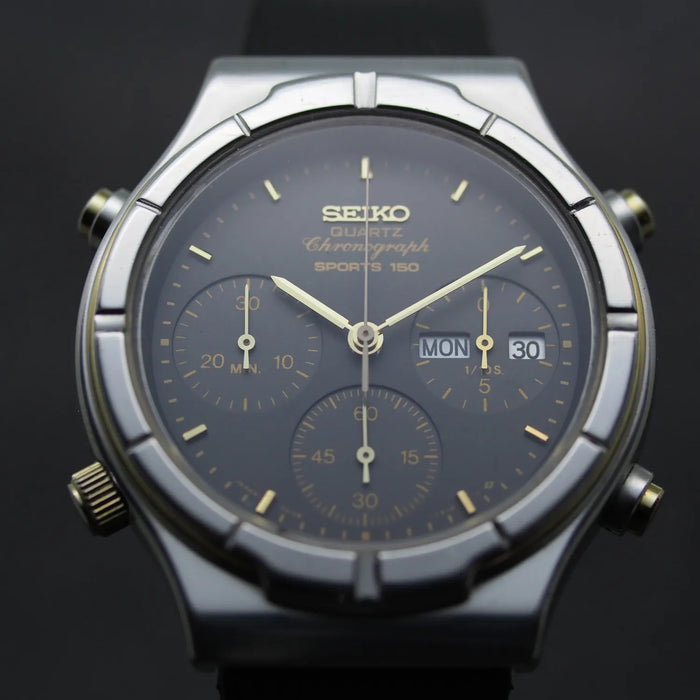

1986: 7A38-713A, Sports 150 with a charcoal dial

The 1986 Seiko Sports 150 7A38-713A uses a charcoal dial, gold-tone detailing and a black strap. In the original photographs, the calendar window sits alongside the right-side fractional-seconds register; this is one of the easiest visible distinctions from a time-only 7A28-family watch. The case is stainless steel in this archive example, unlike the titanium 7130.

The numerical pairing 7A38-713A identifies the movement family and Seiko's case-design code; it is not a combined movement-and-dial code. The dial has its own identifying markings. A caseback code alone cannot verify that the hands, dial, bezel and bracelet are all original to a particular watch.

Servicing, batteries and realistic ownership checks

Because the 7A38 is battery-driven, it needs neither hand-winding nor automatic winding. Its service needs are different from those of a mechanical chronograph, but they are not necessarily trivial. The period parts diagrams show that movement disassembly, gear-train work and adjustment were contemplated in Seiko's service process. At the same time, corrosion, a damaged calendar changeover, broken coil, malfunctioning switch or unavailable part can make restoration difficult and expensive.

Use the correct SR936SW / 394 silver-oxide cell rather than improvising a substitute. The running seconds hand moves in two-second steps as a low-battery indication in Seiko's instructions; this warrants prompt attention, not a conclusion that the quartz oscillator has failed. Seiko's approximately two-year battery-life figure is conditional on its test usage pattern and is not a promise for every surviving watch.

On a prospective purchase, test the calendar outside its changeover period; operate all three chronograph controls in the correct sequence; check each register's start, stop, split and zero alignment; and inspect the case for signs of moisture or battery damage. Inspect the caseback, dial code and photographs for coherence rather than relying on the reference number alone. If the watch is described as water-resistant, request a recent pressure test: historical Sports 150 markings do not guarantee a modern vintage example is safe in water.

The original VWS examples provide an excellent reference for recognising vintage Seiko chronograph designs; the Seiko quartz collection offers a wider view of the brand's electronic movements. For comparison with a different timekeeping principle, our Seiko 7009 guide explains the automatic day/date approach found in a different generation of Seiko watches.

What makes a Seiko 7A38 worth collecting?

The appeal is unusually specific: an early analogue quartz chronograph with visible, independently driven registers, a calendar, and a documented component-level service architecture, fitted to dramatically different 1980s cases. Not every 7A38 is rare, and an elaborate movement does not outweigh poor condition. Correct controls, healthy movement operation, a coherent dial and case combination, and an honest account of restoration matter more than an unqualified 'first ever' claim.

Seiko 7A38 FAQ

Is the Seiko 7A38 automatic or mechanical?

Neither. It is a battery-powered analogue quartz movement. Its hands move through gears and electric step motors rather than a mainspring and mechanical escapement.

How many jewels and motors does a 7A38 have?

The original 7A38A documentation specifies 15 jewels and identifies four separate coil/rotor motor systems, one for normal time and three for chronograph indications.

Does the 7A38 measure tenths or twentieths of a second?

Seiko describes a 5/100-second indication, which is 0.05 second, or one twentieth. Descriptions elsewhere sometimes round or misstate this as 1/10 second.

How do I change the day and date?

Pull the crown to its first click; turn counterclockwise to advance the date or clockwise to change the day, according to Seiko's instructions. Do not quick-set while the displayed hands are between 9 p.m. and 3 a.m.

Is a 7A38 waterproof today if the dial says Sports 150?

No original water-resistance designation can establish its current sealing condition. A qualified watchmaker should test that individual vintage watch before any exposure to water.
