Seiko 6306 vs 6309
The Seiko 6306 and 6309 are easy to confuse because they belong to closely related 1970s automatic movement families. On the best-known 150-metre divers, the watches can be remarkably alike. Yet there are important differences in the seconds-setting function, jewel count, destination market and calendar—and a less obvious complication: not every 6306 or 6309 watch is a “Turtle” diver.
To compare them properly, separate the 6306 and 6309 calibers from the specific watch references housing those calibers. The 6306-7000/7001 versus 6309-7040/7049 comparison is about classic divers; a 6306-8000 Actus versus a 6309-8840 Seiko 5 is not.
Seiko 6306 vs 6309: key specifications
| Feature | Caliber 6306 | Caliber 6309 |
|---|---|---|
| Movement type | Automatic, central seconds, day-date | Automatic, central seconds, day-date |
| Jewels | 21 | 17 (6309A manufacturer parts list) |
| Frequency | 21,600 vibrations/hour (3 Hz) | 21,600 vibrations/hour (3 Hz) |
| Hacking seconds | Yes, in the documented standard 6306 comparison | No |
| Manual winding by crown | No | No |
| Calendar | Day and date, typically Japanese/English on domestic examples | Day and date; language pair depends on market |
| Classic 150 m diver reference | 6306-7000 / 6306-7001 | 6309-7040 / 6309-7049 |
| Markets for those divers | Japanese domestic market | Primarily export markets |
The 6309’s 17 jewels are documented directly in Seiko’s 6309A parts catalogue. The 6306’s 21 jewels, hacking function and market distinction are consistently documented by independent technical references and period-diver specialists. These are relevant differences, but do not assume the extra jewels automatically produce superior accuracy or durability in any surviving watch.
The original Turtle diver comparison
6306-7000/7001: the Japanese domestic specification
The familiar 6306 divers used a cushion-shaped steel case, broad legible dial, a crown positioned around four o’clock and a rotating bezel. Specialist documentation identifies the 6306-7000 and 6306-7001 as Japan-market 150 m divers. Their main appeal to a technical collector is the ability to stop the seconds hand for precise synchronization, together with a typical Japanese/English day disc and the 21-jewel automatic movement.
6309-7040/7049: the export counterparts
The 6309-7040 and 6309-7049 are the internationally recognized export relatives. The basic cushion-case concept is closely related, but the 6309A does not hack and its standard movement has 17 jewels. Market-specific dials, calendar languages and external parts can differ between individual examples; the caseback reference and components deserve more attention than the nickname “Turtle”.
Historical remarks attributed to Seiko diver designer Ikuo Tokunaga say the 6306 and 6309 diver projects were developed in parallel, with the 6306 entering production slightly first. This is an eyewitness recollection preserved by collectors, not a substitute for a complete factory production register. It does not justify inventing total production figures or a universal rarity premium.
Do they feel different when setting the time?
Yes. Pulling the crown to the time-setting position stops the seconds hand in a standard 6306; on a 6309 it continues running. Neither is designed to be fully wound through the crown in the way a hand-winding watch is. That distinction affects synchronization, not the fundamental fact that both movements are automatic.
Important: the 6306 also appeared outside divers

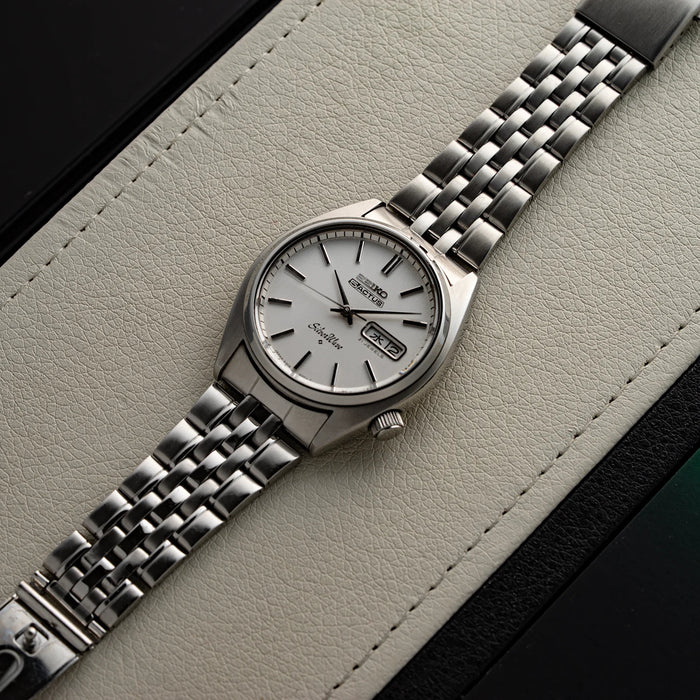

Vintage Watch Studio’s own archive supplies a useful counterexample to the idea that every 6306 is a Turtle: the 1976 Seiko 5 Actus 6306-8000 SilverWave. The owner catalog identifies caliber 6306, 21 jewels, a brushed silver dial and a framed day-date. It is an Actus/SilverWave-style watch, not a 6306-7001 cushion-case diver. A 6306-8000 product photograph cannot truthfully illustrate a 6306-7001 case or bezel.
The presence of “Seiko 5 Actus” on the dial is also a reminder that model-family labels and technical movement designations are different layers of identification. Here a Seiko 5 watch uses a caliber that enthusiasts frequently associate with Japan-market divers.
The 6309 appeared in much more than the Turtle

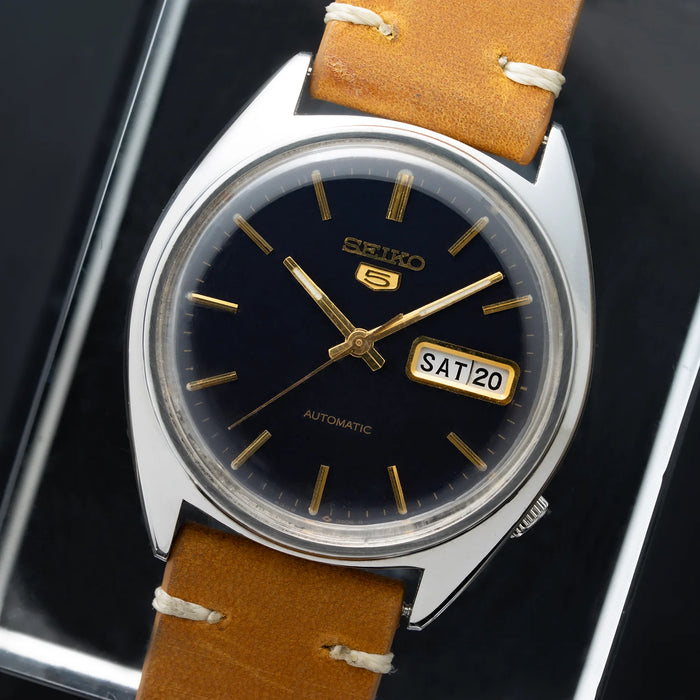

Seiko used 6309 in numerous ordinary automatic wristwatches, including Seiko 5 dress references. The VWS archive contains the 6309-8840 from 1976 with a dark blue dial, 36 mm case and day-date, and the 6309-5030 TV-screen dress model from 1977. Neither should be described as a 6309-7040 dive watch simply because it shares the movement number.
A model-only comparison would miss this variation. A 6306-8000 and a 6309-8840 may differ more in case shape, crown construction and dial than a pair of the two classic divers differ from one another, even though the movement-level distinctions remain.
What can be confirmed from the movement and photographs?
Start with the caliber-case inscription on the back. The four-digit prefix normally identifies the movement family, while the suffix identifies a case design. A watch marked 6309-5030 is not, by that reference, a 6309-7040. A clear movement photo helps corroborate the movement that is physically installed; a rotor photo is not proof of the exact year or originality of the dial.
On the diver references, inspect dial layout and lettering, bezel, insert, hands, crown, caseback markings and the calendar language together. Later replacement parts and aftermarket dials can make a superficially convincing watch; a Kanji day wheel by itself is not proof that every visible component is original. Parts should be assessed against the exact reference and production context.
Service questions that matter more than the jewel count
Water resistance on a vintage 150 m case
“Water 150m Resist” describes the original design intent, not a permanent guarantee that a decades-old watch is safe to dive with today. Corrosion, old seals, compromised crystals, worn crown threads and earlier servicing can affect a watch. Never assume an untested vintage diver is suitable for water use based on its dial or caseback alone; current pressure testing is essential to any intended immersion.
Automatic operation and calendar correction
Both calibers rely on automatic winding, so a crown that will not manually wind the mainspring is not necessarily broken. The day/date quickset must be checked gently at an appropriate safe time, following instructions for the specific movement. If the crown jams, the calendar fails to advance or the hands shift abnormally, further forcing is unwise. The condition of the gear train, automatic system and calendar mechanism should be considered together.
Seconds stopping is a function, not a precision certificate
Hacking lets the 6306 be synchronized to a time signal. It does not establish that the watch will then keep closer time than a healthy 6309. Accuracy is affected by the particular specimen, service, magnetism, balance condition and regulation. Nor should a higher jewel count be interpreted as “four fewer worn parts” or as proof of better water resistance.
Which movement should a collector choose?
If your goal is a period Japanese-market Turtle with hacking seconds and its characteristic specification, investigate the 6306-7000/7001. If you want the globally distributed original Turtle design, a correctly documented 6309-7040 or 7049 may be more aligned with that brief. But if you mainly want a wearable automatic with 1970s character, a Seiko 5 Actus 6306-8000 or a 6309-powered dress model can be equally interesting for entirely different reasons.
Review the detailed Seiko 6309 movement guide for that caliber’s broader dress-watch use, or explore the VWS Seiko archive to compare actual reference numbers and original photographs. Any watch marked sold remains an archive example rather than an available purchase.
The decisive difference between 6306 and 6309 is their movement specification, especially hacking and the jewel count. The decisive difference between two watches may instead be their reference, condition, originality and intended use. Keeping those questions separate is the best way to avoid buying the wrong “Turtle”.
Frequently asked questions
Does the Seiko 6306 hack?
Yes. Standard documented 6306 examples stop the seconds hand when set; the 6309 does not.
Can a Seiko 6306 or 6309 be manually wound?
No. The vintage 6306/6309 movement designs discussed here wind automatically rather than by turning the crown to wind the mainspring.
Are all Seiko 6306 watches Japanese Turtle divers?
No. The 6306-7000/7001 are known Japan-market divers, but 6306 also appears in watches such as the documented Seiko 5 Actus 6306-8000.
Are 6309 Seiko 5 watches the same as 6309-7040 divers?
No. They share the movement family, not the same case, bezel, intended market or external design. The complete reference matters.
Can I dive with a vintage 6306 or 6309 Turtle?
A historic 150 m dial marking is insufficient. Only a watch confirmed suitable by contemporary pressure testing and condition checks should be considered for water use.
